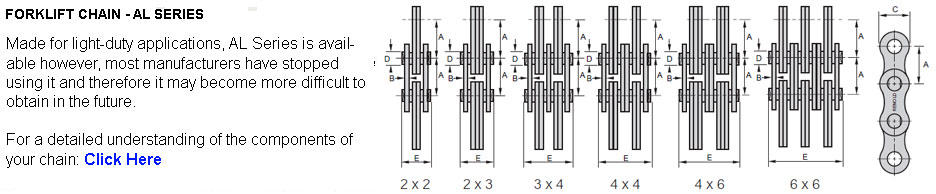

AL Series | BL Series
| Availability | Chain No. | Pitch | Lacing | Plate Thickness | Plate Height | Pin Diameter | Pin Length | Average Chain Weight |
|---|---|---|---|---|---|---|---|---|
| Click Here | AL888 | 1.000" | 8x8" | 0.120" | 0.795" | 0.312" | 2.102" | 3.964 Lbs. |
| Click Here | AL866 | 1.000" | 6x6" | 0.120" | 0.795" | 0.312" | 1.606" | 2.936 Lbs. |
| Click Here | AL844 | 1.000" | 4x4" | 0.120" | 0.795" | 0.312" | 1.110" | 2.009 Lbs. |
| Click Here | AL822 | 1.000" | 2x2" | 0.120" | 0.795" | 0.312" | 0.614" | 0.974 Lbs. |
| Click Here | AL666 | 0.750" | 6x6" | 0.096" | 0.602" | 0.234" | 1.280" | 1.666 Lbs. |
| Click Here | AL644 | 0.750" | 4x4" | 0.096" | 0.602" | 0.234" | 0.882" | 1.115 Lbs. |
| Click Here | AL622 | 0.750" | 2x2" | 0.096" | 0.602" | 0.234" | 0.496" | 0.504 Lbs. |
| Click Here | AL588 | 0.625" | 8x8" | 0.080" | 0.504" | 0.200" | 1.417" | 1.478 Lbs. |
| Click Here | AL566 | 0.625" | 6x6" | 0.080" | 0.504" | 0.200" | 1.071" | 1.142 Lbs. |
| Click Here | AL544 | 0.625" | 4x4" | 0.080" | 0.504" | 0.200" | 0.740" | 0.739 Lbs. |
| Click Here | AL466 | 0.500" | 6x6" | 0.061" | 0.382" | 0.156" | 0.831" | 0.739 Lbs. |
| Click Here | AL444 | 0.500" | 4x4" | 0.061" | 0.382" | 0.156" | 0.583" | 0.470 Lbs. |
| Click Here | AL422 | 0.500" | 2x2" | 0.061" | 0.382" | 0.156" | 0.315" | 0.269 Lbs. |
| Click Here | AL1266 | 1.500" | 6x6" | 0.191" | 1.209" | 0.437" | 2.500" | 6.786 Lbs. |
| Click Here | AL1244 | 1.500" | 4x4" | 0.191" | 1.209" | 0.437" | 1.709" | 4.529 Lbs. |
| Click Here | AL1066 | 1.250" | 6x6" | 0.158" | 0.996" | 0.375" | 2.087" | 4.522 Lbs. |
| Click Here | AL1044 | 1.250" | 4x4" | 0.158" | 0.996" | 0.375" | 1.441" | 3.030 Lbs. |
